Small Turning Radius Order Picker Forklift Lifting Height 1.14m High Efficiency

Name: Small Turning Radius Order Picker Forklift Lifting Height 114m High Efficiency
Brand: REACH
Price: 1 USD

Small Turning Radius Order Picker Forklift Lifting Height 1.14m High Efficiency Manufactures

Brand Name : REACH

Model Number : OPL10G

Certification : CE, TUV

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 25 - 30 days

Packaging Details : 1set / pallet

Capacity : 1000kg

Max. lifting height : 1140mm

Width overall forks : 580mm

Turning radius : 1897mm

Travel speed, laden/unladen : 6km/h

Lift speed, laden/unladen : 0.1/0.14m/s

Battery : 24V240AH

Service weight : 1195kg

Contact Now

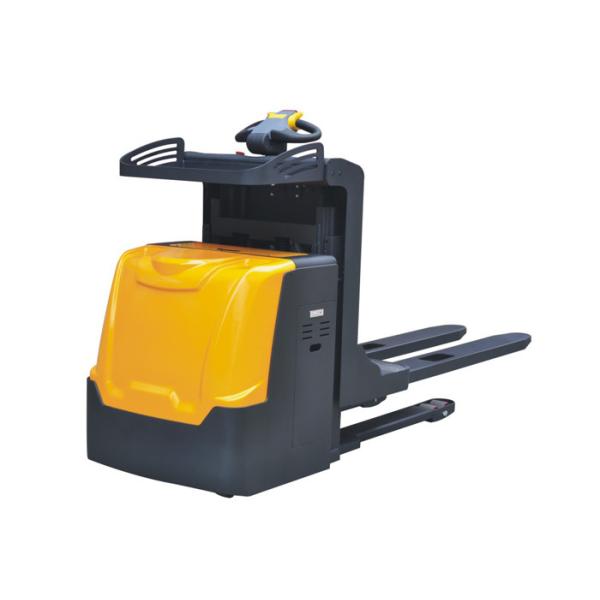

Electric low level order picker capacity 1000kg max. lifting height 1.14m with small turning radius and stepless speed

Quick details:

Capacity: 1000kg

Max. lifting height: 1.14m

Fork dimensions: 60/180/1500mm

Width overall forks: 580mm

Aisle width for pallets 1000*1200 crossways: 2904mm

Turning radius: 1897mm

Travel speed, laden/unladen: 6km/h

Lifting speed, laden/unladen: 0.1/0.14m/s

Service weight: 1195kg

Advantages:

Load capacity is 1000kg, Max. lifting height of platform is 1.14m. It is very convenient to pick up goods. The capacity of storage compartment in front of the operator is 60kg.
Advanced power steering system (EPS) handle ensures effortless and highly efficient maneuver ability.
Ergonomic human engineering design provides the convenience and comfort operation.
Combining of regenerative brake and electromagnetic brake provide safe and reliable brake.
Side-way battery designs is very convenient for maintenance and replacement.
Adding the USB charge device on the control panel which could charge the phone, pad and so on.

Small Turning Radius Order Picker Forklift Lifting Height 1.14m High Efficiency

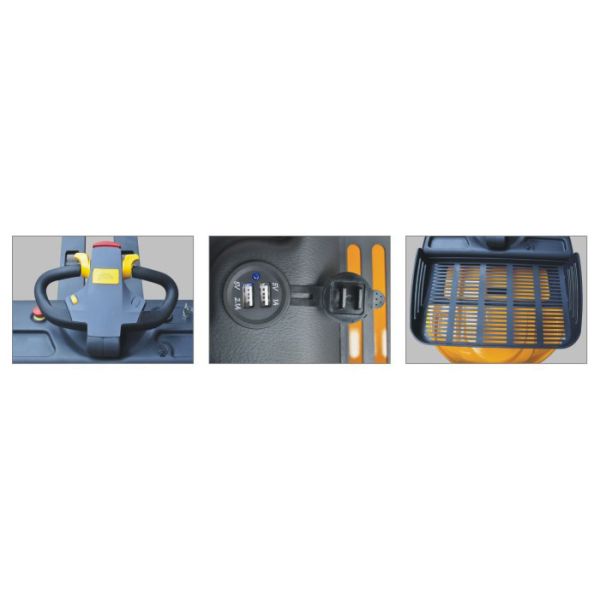

Germany Frei Handle USB charge device Large metal storage tray for

small material storage within 60kg.

SPECIFICATIONS
Model		OPL10G
Drive type		battery
Load capacity	kg	1000
Load center distance	mm	700
Load distance, centre of drive axle to fork	mm	515
Tyre size, front	mm	250*70
Tyre size, rear	mm	80*84
Aditional wheel	mm	150*60
Height, mast lowered	mm	1275
Max. lift height	mm	1140
Height, mast extended	mm	2335
Lowered height	mm	90
Overall length	mm	2885
Overall width	mm	812
Overall height	mm	1383
Fork dimensions	mm	60/180/1500
Width overall forks	mm	580
Wheelbase ground distance	mm	29
Aisle width for pallets 1000*1200 crossways	mm	2904
Aisle width for pallets 800*1200 lengthways	mm	2904
Turning radius	mm	1897
Travel speed, laden/unladen	km/h	6
Lift speed, laden/unladen	m/s	0.1/0.14
Lowering speed, laden/unladen	m/s	0.1/0.1
Battery	V/Ah	24/240
Service weight	kg	1195

Small Turning Radius Order Picker Forklift Lifting Height 1.14m High Efficiency
